Shower hoses

SHOWER HOSES


CHROMED BRASS OR STAINLESS STEEL EXECUTION


All hoses can be equipped with a saver or a valve

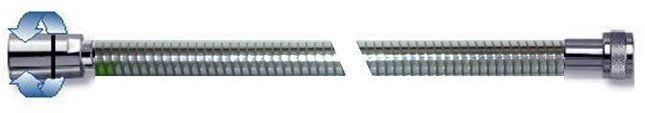

Flexible double interlock "EXPORT"
Electropolished stainless steel

With ACS
tensile strength: approx. 45 kg
Nr 015040NT/150-cone x brass nutchromium
Nr 015050NT/175-cone x brass nutchromium
Without ACS
Nr 015020NT/150-cone x brass nutchromium
Nr 015030NT/175-cone x brass nutchromium

"Security" double interlock hose
Stainless steel with additional chrome plating

Warranty: 10 years
tensile strength: 70 kg approx.
standards: EN 1113, ACS, KTW
Nr 01000115 /150-cone x nut
Nr 01000130/175-cone x nut
Nr 01000145/200-cone x nut

"Security" double interlock hose
Chromed brass

Warranty: 10 years
tensile strength: 70 kg approx.
standards: EN 1113, ACS, KTW
With nut x rotating cone:
No. 01000175/150
No. 01000190/175
No. 01000205/200
With rotating cone x cone:
No. 01000235/150
No. 01000260/175
No. 01000275/200

"Security" double interlock hose
Chrome-plated brass - M15 x 1/2" removable

Spec.
tensile strength: 70 kg approx.
standards: EN 1113, ACS, KTW
With rotating cone:
No. 01000290-M15/125
No. 01000305-M15/150
With cone:
No. 01000320-M15/125
01000335-M15/150

Braided stainless steel hose "Ultra" DN8

smooth outer transparent sheath
2 cones 1/2"
standards: ACS, KTW
Nr 0300NT10/125-cone x cone
Nr 0300NT20/150-cone x cone
(also for large kitchens)

REINFORCED PLASTIC EXECUTION


Outstanding design

All hoses can be equipped with a water saver or a valve

Flexible design "Chromflex" - 2 mm

tensile strength: 60 kg min.
standards: EN 1113, KTW, ACS, (Ø14)
With rotating cone x nut:
No. 01000605/150
No. 01000630/175
With cone x nut:
No. 01000645/150
No. 01000660/175

Flexible design "Chromflex" – 4 mm

tensile strength: 60 kg min.
standards: EN 1113, KTW, ACS, (Ø14)
With rotating cone x nut:
No. 01000690/150
No. 01000705 /175
With cone x nut:
No. 01000735/150
No. 01000750/175

Flexible design "Silverline" - (Ø14)

tensile strength: 60 kg min.
standards: EN 1113, KTW, ACS
With rotating cone x nut:
No. 01000780/150
No. 01000805/175
With cone x nut:
No. 01000835 /150
No. 01000850/175

Flexible design "Ramoeasy" - (Ø14)

standards: EN 1113, KTW, ACS
("Original Hansgrohe" tubing)Novotec connection)
With rotating cone x smooth short cone:
No. 01000880 /150
No. 01000895/175

Flexible design "Ramostar" (Ø14)

tensile strength: 80 kg approx.
10 year warranty
standards: EN 1113, KTW, ACS
With rotating cone x 2:
No. 01000925 /150
No. 01000940/175
With rotating cone x nut:
No. 01000970/150
No. 01000985/175

Flexible design
"Star 15" (Ø15)

tensile strength: 80 kg approx.
(with 2 rotating cones 70 kg approx.)
standards: EN 1113, KTW, ACS
With rotating cone x 2:
No. 01001015/150
No. 01001030/175
With rotating cone x smooth short cone:
No. 01001060/150
No. 01001075/175

"Nylon braided" hose DN8, 8 bar

standards: ACS, (KTW, NSF)
Black color
No. 0300NT60/125
rotary cone x hexagon nut
White colour
No. 0300NT75/125
rotary cone x hexagon nut

"Nylon braided" hose DN8 - M15 x 1/2",
8 bar

removable, with special coupling
standards: ACS, (KTW, NSF)
Black color
Nr 0300090/125-M15 x cone
Nr 0300105/150-M15 x cone
White colour
Nr 0300120/125-M15 x cone
Nr 0300135/150-M15 x cone

VARIOUS CONES AND ACCESSORIES FOR HOSES


standard cone
½" chrome-plated brass

with O-ring
According to EN1113 standard
No. 0100NT04

Smooth standard cone
½" chrome-plated brass

without O-ring
According to EN1113 standard
No. 0100NT05

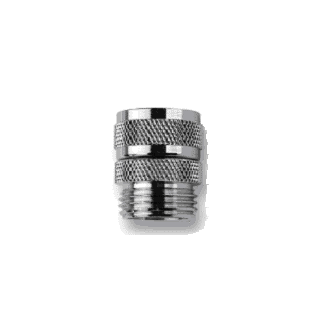

Knurled cone
½" chrome-plated brass

without O-ring
According to EN1113 standard
No. 0100NT06

100% knurled cone
(on the faucet side)

av. integrated regulator
10 liters, independent of
pressure - ACS/KTW
No. 0100NT10

½" rotating cone
integrated

with sealtoric and grease,ACS,
Certified according to standardEN1113
No. 0100NT03

Cone moleté - ACS/KTW

with valve combinationnon-return and regulatorintegrated 10 l. independent ofpressure
No. 0100NT16

Knurled cone – ACS

with check valveintegrated
No. 0100NT12

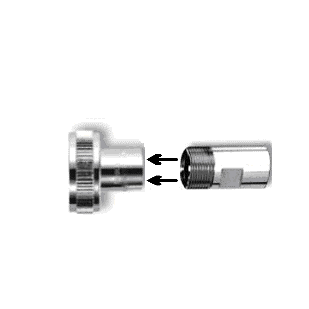

Removable option:
1/2" x nutsocket M15x1 int.for connection
special M15x1 ext

Nr. 0100NT07

Hexagon nut ACS
1/2" or 3/4"

Nr. 0110NT01

ACS knurled nut
1/2" or 3/4"

Nr. 0110NT02

Rotary union
1/2" int./ext.

Nr. 0100NT08

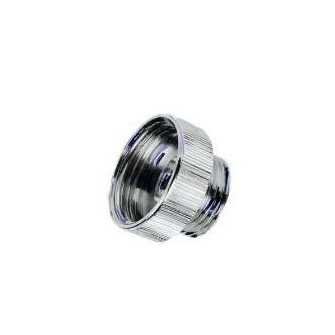

Reduction ¾ " int. x ½ " ext. chromed brass

Nr. 0600NT00

Drain valve with cautomatic lap
½ "ext. x ½ "int.

forshower hose
No. 00X00200

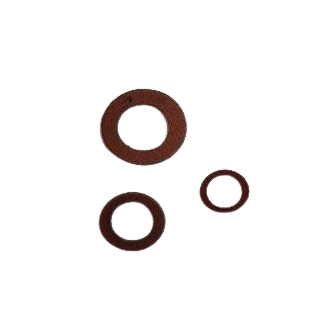

Bio-fiber joints
KTW - ACS

N° 00X00020 - 1/2”
N° 00X00040 - 3/4”
N° 00X00060 - 3/8”

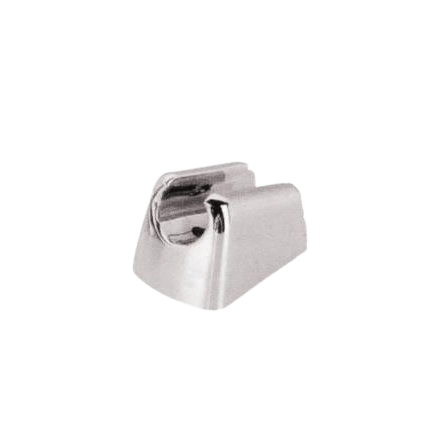

Fixed wall bracket
Chromed ABS

for hoses with cone
01503022

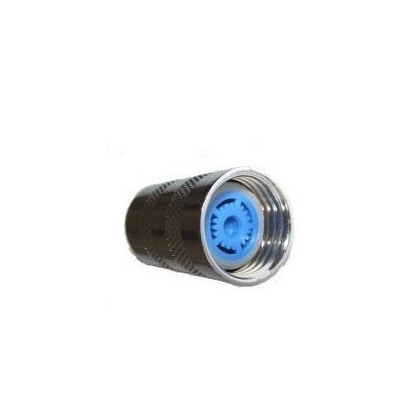

½" connection - ACS

with regulatorindependent of the
pressure10 liters (standard)
06080004
other sizes to choose from

Regulators alone
independent of the
pressure - ACS

Various liters ondemand

½" connection - ACS

with check valveand regulator 10 liters(blue) independent ofpressure or 8 liters (white)
Warning ! It istake care of the meaning ofwater flow!
No. 006012NT69 - 10 liters
No. 006012NT70 - 8 liters

OUR SPECIALTIES: WITH W270 CLASSIFICATION


The designation W270 is a quality classification, describing a test method for determining microbial growth on materials in contact with water.


An accredited laboratory tests the shower hoses and issues a certificate if the test is conclusive.


This test guarantees enhanced protection against biofilm, reduction of bacteria and material odors, especially with hot water. This should in no way be compared to the ACS or KTW.


This additional W270 certification is increasingly requested by hotels, hospitals, retirement homes and municipalities.


Hoses with the designation W270 from Novotec are technically a generation ahead.

Flexible double staple "Legioplus"
expandable

Stainless steel front. additional chrome plating
platinum silicone inner hose
cured W270
KTW /ACS /WRAS
protection against biofilm!
standards EN1113, ACS, WRAS
With nut x rotating cone:
Nr 01002015 /1.15-1.60m
No. 01002030 /1.50-2.00m
No. 01002045/1.75-2.25m
With rotating cone x 2:
No. 01002075/1.15-1.60m
No. 01002090/1.50-2.00m
No. 01002105/1.75-2.2 5m

Flexible double staple "Legio2"
Stainless steel with additional chrome plating

platinum silicone inner hose
polymerized W270 – KTW
tensile strength: approx. 70 kg
protection against biofilm!
standards EN1113, ACS - KTW
With rotating cone x cone:
No. 01002605/150
No. 01002620/175
No. 01002635/200

Flexible double interlock "Legio"
Chromed brass

PVC inner hose – W270 - KTW
protection against biofilm!
tensile strength: approx. 70 kg
standards EN1113, ACS/ KTW / WRAS
With nut x rotating cone:
No. 01002705/150
No. 01002720/175
No. 01002735/200
With rotating cone x 2:
No. 01002765/150
No. 01002780/175
No. 01002795/200

Flexible design "LegioStar 15"- (Ø15)

PVC inner hose
conform to theKTW/W270 standard Reinforced plastic
tensile strength: 70 kg approx.
standards EN 1113, ACS, KTW
Nr 01NT4015/150 - rotary cone x cone
regulator combination (10ltr.
pressure independent) and non-return valveintegrated

Nr 01NT4030/175 - rotary cone x cone
Combination regulator (10ltr. indep.pressure) and check valveintegrated

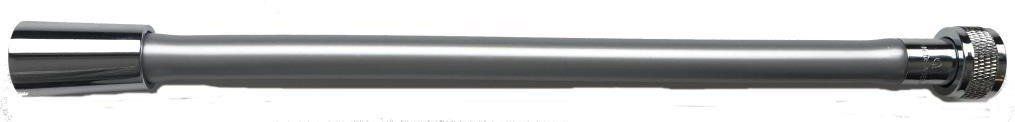

Hose Design "SILVERCLEAN"
(PVC free) - TPE - Silver

tensile strength: 50 kg approx.
W270 – ACS – EN1113
Nr 01NT01002805/150-nut
knurled x long rotating cone
Nr 01NT01002815/175-nut
knurled x long rotating cone
Nr 01NT01002825/200-nut
knurled x long rotating cone

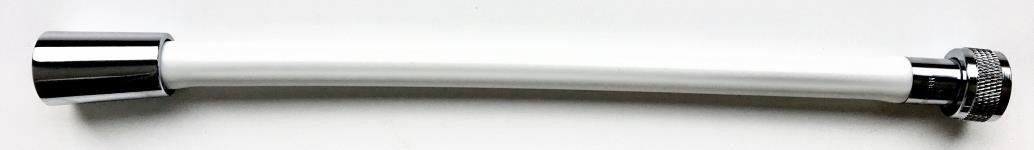

Flexible Design "SILVERCLEAN"
(sans PVC) - TPE - Blanc

tensile strength: 50 kg approx.
W270 – ACS – EN1113
Nr 01NT01002835/150-nut
knurled x long rotating cone
Nr 01NT01002845/175-nut
knurled x long rotating cone
Nr 01NT01002855/200-nut
knurled x long rotating cone

Hose Design "ChromCLEAN2"
Chrome (PVC free) - TPE

tensile strength: 50 kg approx.
Nr 01NT01002865/150-nut
knurled x long rotating cone
Nr 01NT01002875/175-nut
knurled x long rotating cone
Nr 01NT01002885/200-nut
knurled x long rotating cone

"ROYAL" stainless steel 304 double interlock flexible hose

Warranty: 15 years
0.22 with additional chrome plating
tensile strength: 110 kg approx.
solid brass inner sleeve
flex.inter. polymerized platinum silicone
W270 – thickness 1.1mm
The warranty is excluded for all
added parts such as e.g. the
valve or the plastic limiter or
rubber
Nr 01NT4135/150-nut x cone
Nr 01NT4165/175-nut x cone
Nr 01NT4195/200-nut x cone

Double interlock hose
"LEGIO CONTROL"

This dual function hose is parta shower suit veryeffective against bacteria andlegionella with a worldwide patentdeposit. This very special hose has beendeveloped and produced by Novotec.
Sale is only possible
combined with a special shower head andsome European countries already have them
exclusivity.
Only on request
No. 01NT4305/150
No. 01NT4320/175

Why a non-return valve in a hand shower or a shower hose?


Quite simply, to allow serene use of water, the entire recovery system must comply with European standard EN1717. The EN 1717 standard informs us about the means and systems to be put in place within internal networks with the aim of anticipating direct or return pollution of drinking water. Thus, thanks to a non-return valve fitted in the shower head or the hose or better still thanks to a drain tap with non-return valve, a possible return of dirty water into the pipes is avoided. (see page 5) To avoid assembly errors, the insertion of the check valve, the regulator or the combination of the two will always be done on the valve side.
